For O.D Clearance grinding
For O.D Clearance grinding
| FEPA Shape | Dmm | Wmm | Xmm | V° | Hmm | Grit size | Con. | Grit size | Con. |

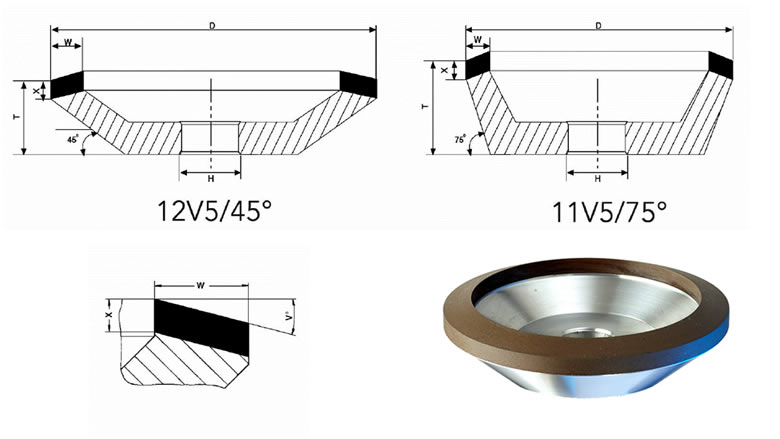

| 12V5/450 & 11V5/750 | 75 | 6 | 3 | 20°,30° | 20/ 31.75/ 40 | D46, D64, D76 | C100, C115, C125 | B107, B91,B76 | Cl00, C115, C125 |
| 10 | 6 | ||||||||
| 100 | 6 | 3 | |||||||
| 10 | 6 |
| FEPA Shape | Dmm | wmm | Xmm | Hmm | Grit size | Con. | Grit size | Con. |

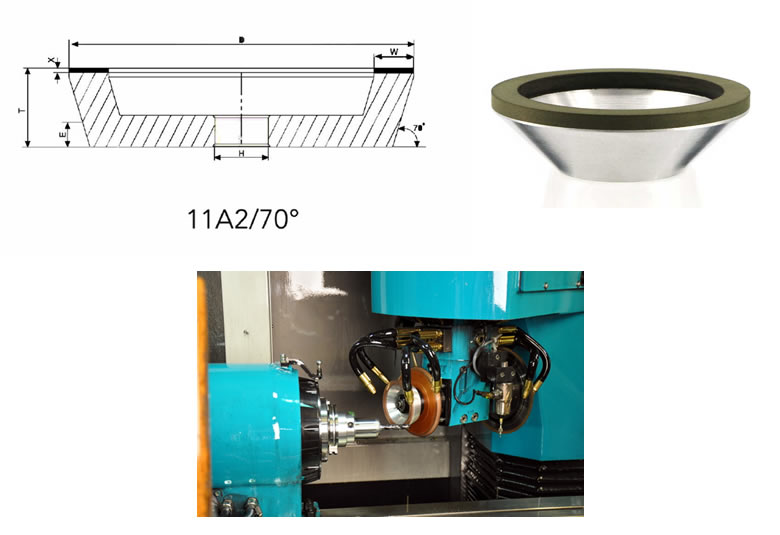

| 11A2/700 | 100 | 6 | 3 | 20/31.75/40 | D107,D91,D76 | C125 | B107,B91, B76 | C125 |
| 125 | 10 | 6 |
