For End & Point grinding
For End & Point grinding
Diamond are used for making tungsten carbide tools and CBN for HSS tools

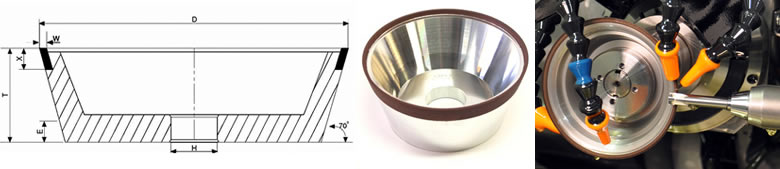

| FEPA Shape | Dmm | Wmm | Xmm | Hmm | Grit size | Con. | Grit size | Con. |
| 11V9/700 | 75 | 2 | 6/10 | 20/31.75 | D91, D76,D64, D46 | C100,C115, C125 | B151,B107 B91,B76 | C100,Cl15,C125 |
| 100 | 3 | 6/10 | ||||||
| 125 | 3 | 10 |

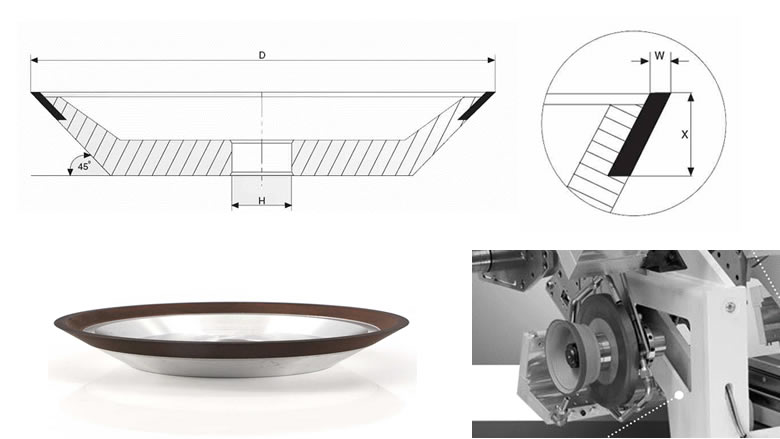

| FEPA Shape | Dmm | Wmm | Xmm | Hmm | Grit size | Con. | Grit size | Con. |
| 12V9/450 | 75 | 2/3 | 6/10 | 20/31.75 | D126,D91, D76,D64,D46 | C100,Cl15,C125 | B151,B107, B91,B76 | C100,C115, C125 |
| 100 | 2/3 | 6/10 | ||||||
| 125 | 2/3 | 6/10 |
